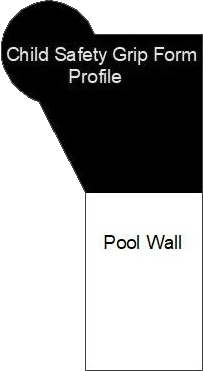

Child Safety Grip is a unique cantilever profile which meets or exceeds the commercial specifications for swimming pool edge design in most markets. This design features a child-size handhold. Stegmeier LLC has combined a proven deck form technology with a slip-form method in creating this child friendly handhold.

Installation begins by attaching the foam forms to the tile using the tie wire method. This procedure is familiar to most swimming pool deck contractors. Concrete is placed and vibrated as necessary to insure against voids or honeycomb. The additional concrete is then applied with the Hopper Applicator. This tool “slip-forms” the remaining concrete into place. After the forms are removed, tooling is accomplished by using specialized finishing tools. These tools come as a set and meet requirements for inside and outside 90-degree corners and tight radius applications.

The Child Safety Grip profile offers a strikingly classic symmetry that is a compliment to any swimming pool design.

Child Safety Grip Tools

Stegmeier Patented
Part # Description:
CSG000 Child Safety Grip Form Only
CSG011 Child Safety Grip Form White – No Tie Wire
CSG111 Child Safety Grip Form Tie Wire – No Strip
CSG112 Child Safety Grip Form White
CSG122 Child Safety Grip Form Grey
CSG132 Child Safety Grip Form Tan
CSG162 Child Safety Grip Form Black
Quantity:
14 Child Safety Grip Form (8′ lengths)
14 Tile Strip (8′ lengths)
1 Tie Wire Side Kit
1 Roll of Bending Tape
1 Instruction Sheet



Contact us for the latest info
