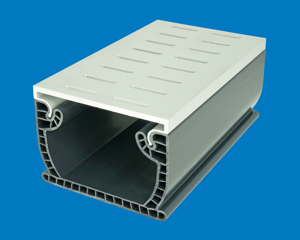

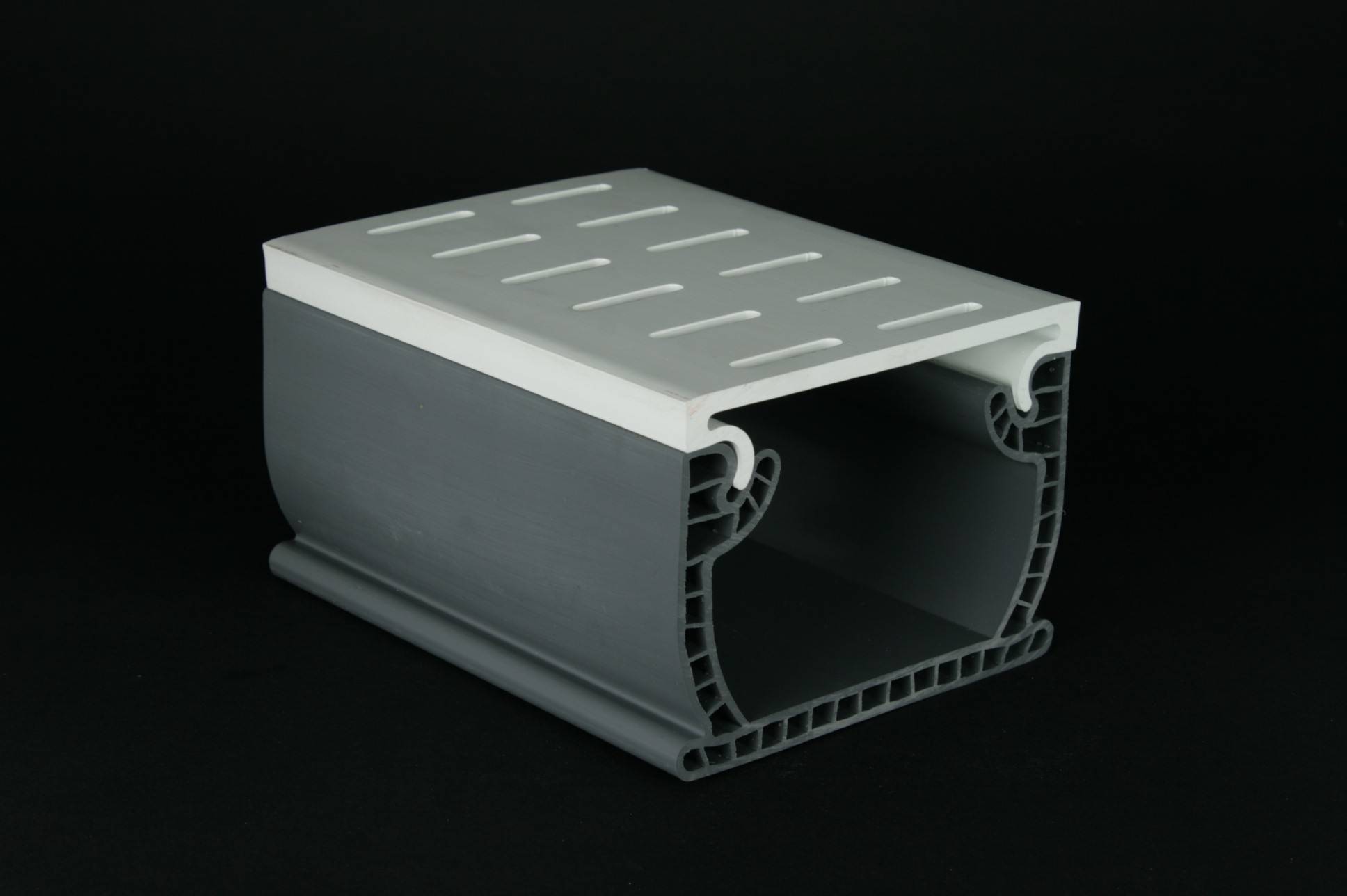

This Deck Drain is a removable top drain that features a double wall base and a snap in top. When installing this drain the tops are staggered past the joints making the joints very rigid. Because the Flowmaster Deck Drain tops are removable this drain is easy to clean and the tops can be replaced if ever damaged. It is recommended that you drill and pin (3/8″ rebar) the base at 3 foot intervals to stabilize against any movement in the concrete slab.
Stegmeier Patented
          4inch
Part # Flowmaster Commercial Drain
FMW White

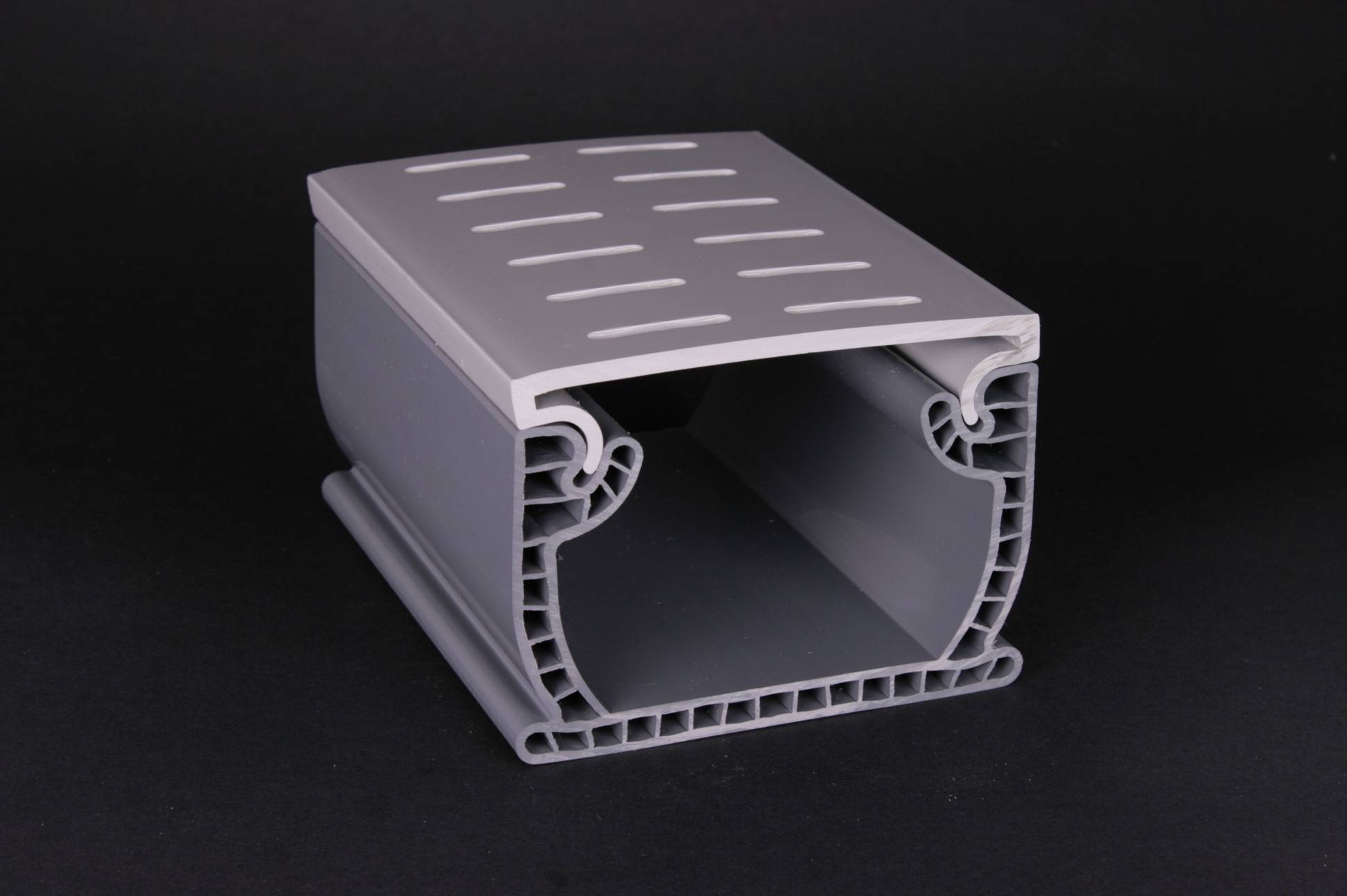

FMG Grey

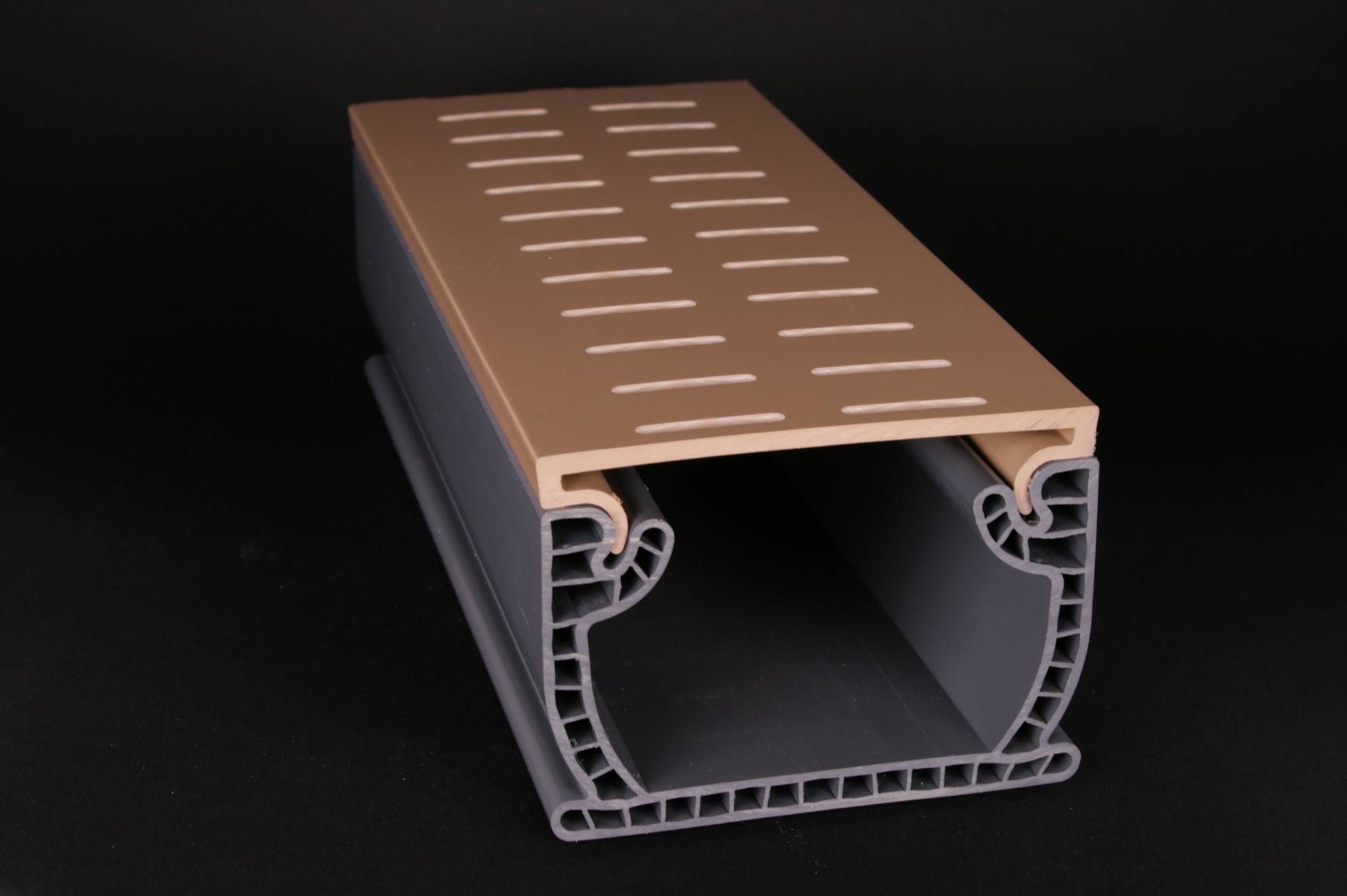

FMT Tan
Carton Includes:
4 Bases (10′ Lengths)
4 Top Caps (10′ Lengths)
4 Couplers
Part # Top Cap Only

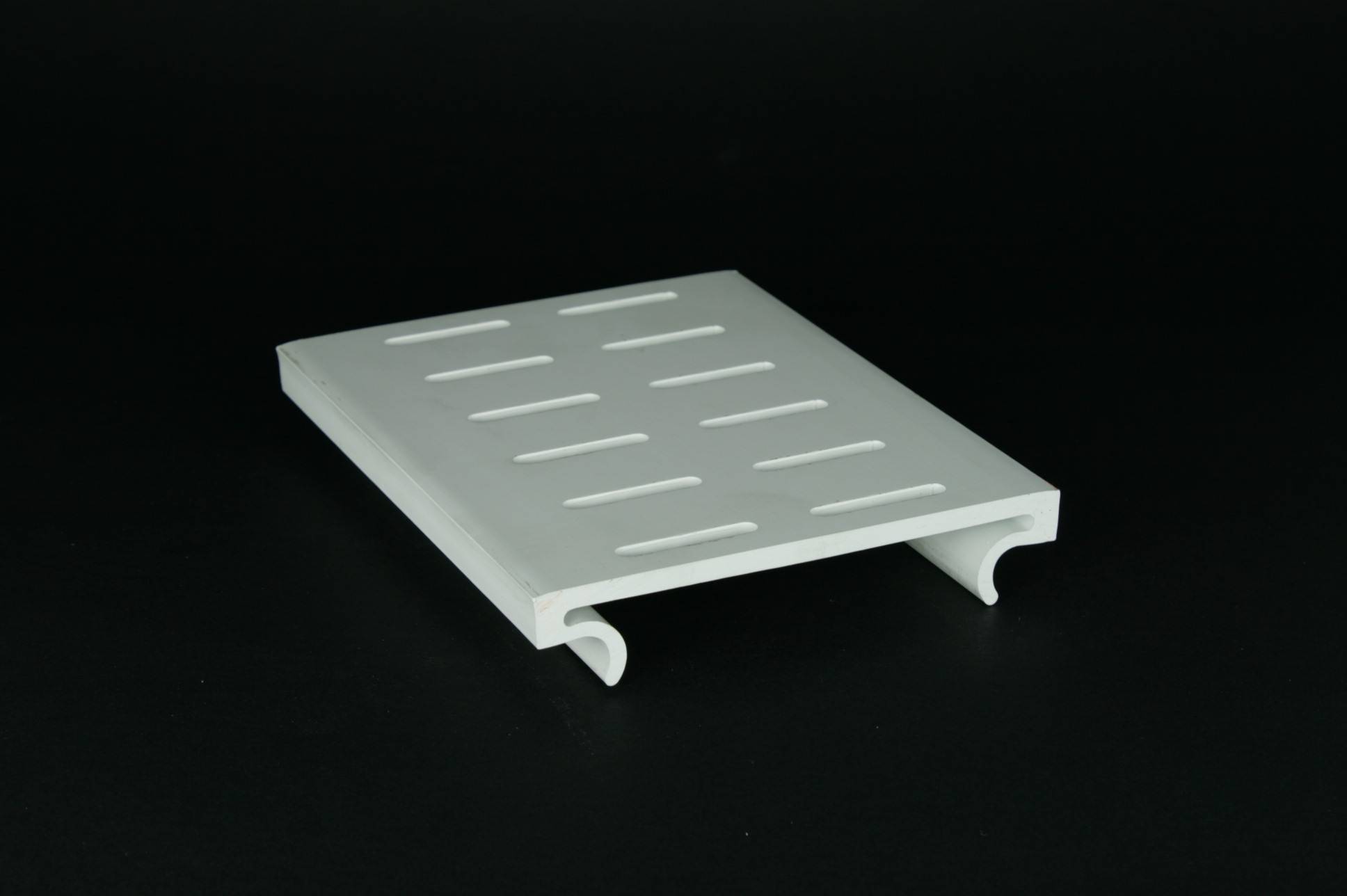

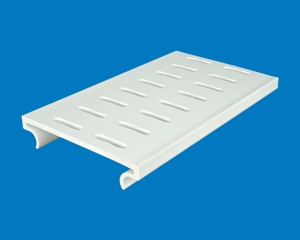

FM-TCW White (4 pieces per carton, 10′ lengths)

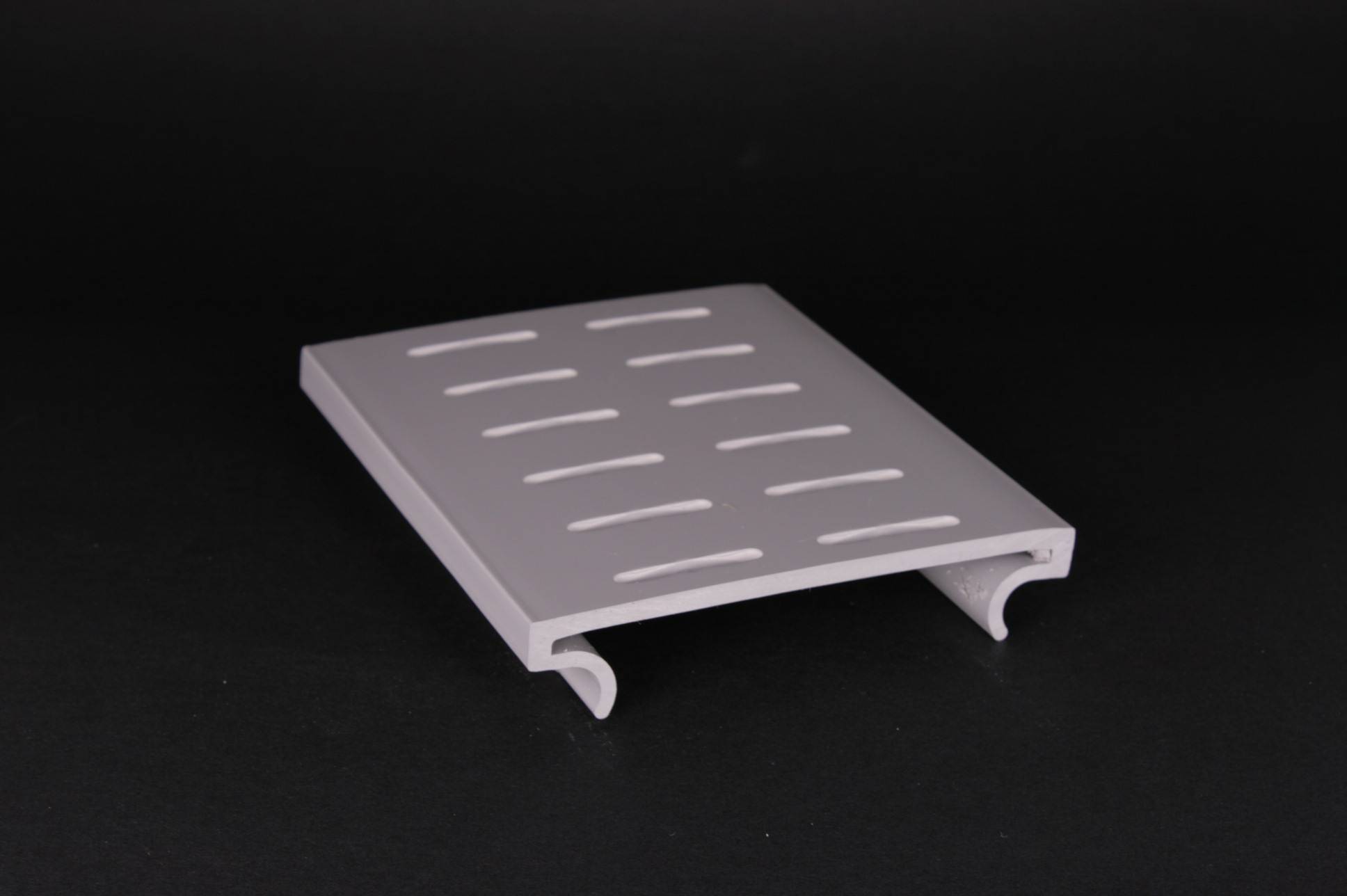

FM-TCG Grey (4 pieces per carton, 10′ lengths)

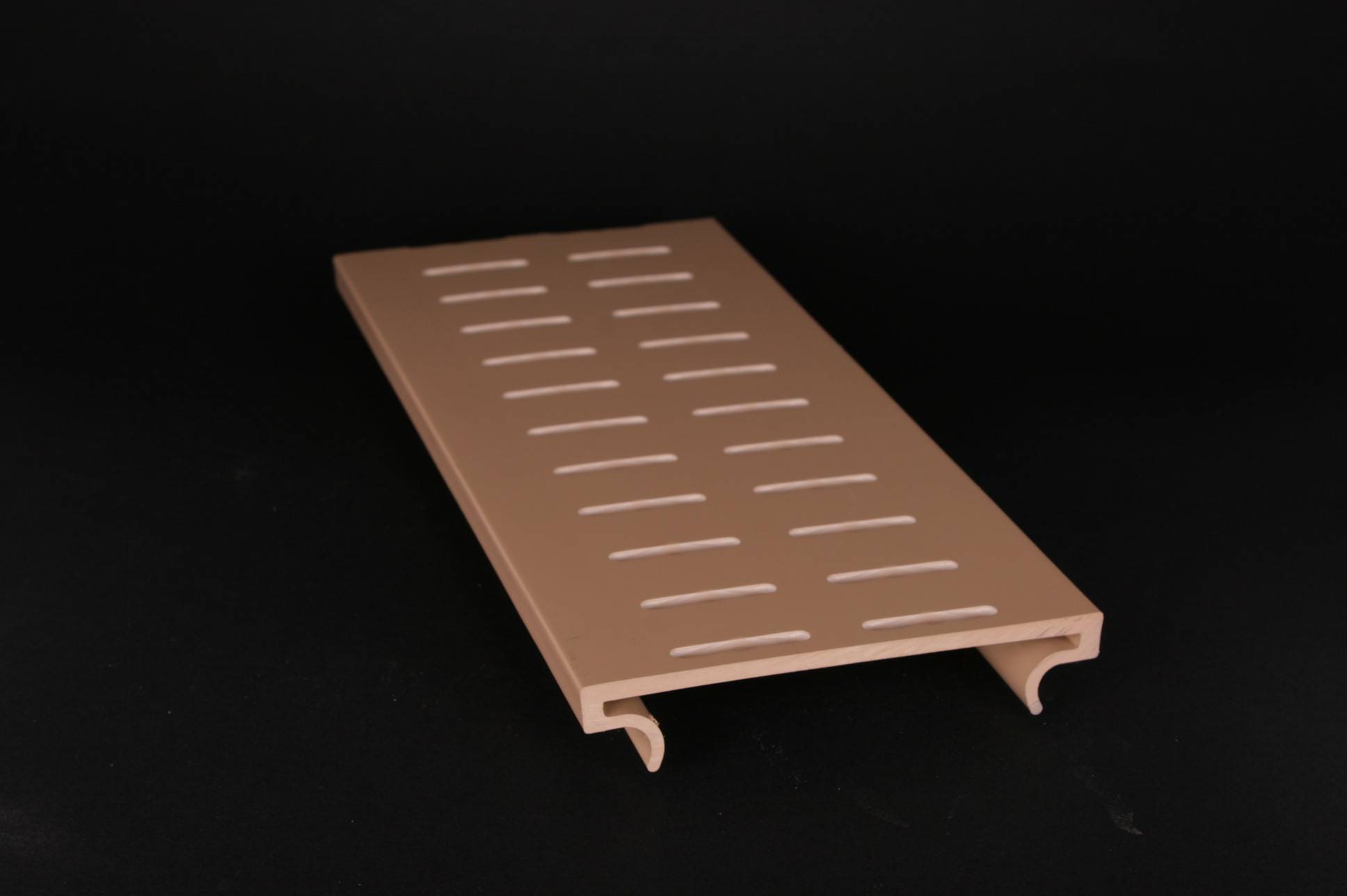

FM-TCT Tan (4 pieces per carton, 10′ lengths)
Part # Base Only

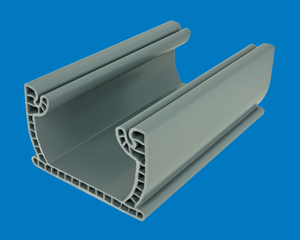

FM-BASE Base only (4 pieces per carton, 10′ lengths)
Part # Fittings

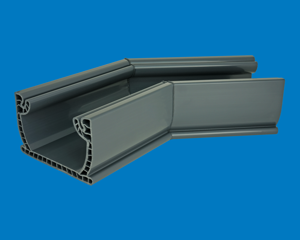

FM45 45 degree angle (1 per carton)

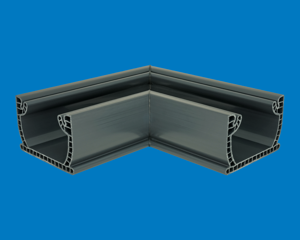

FM90 90 degree angle (1 per carton)

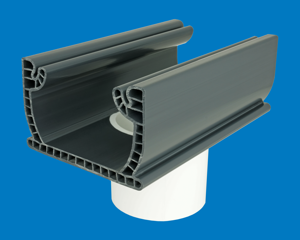

FMDA Down Adapter (1 per carton) – Adapts to 3″ schedule 40 pipe

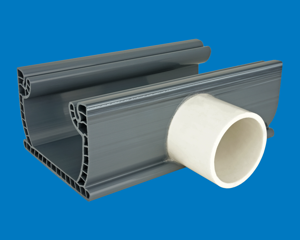

FMSA Side Adapter (1 per carton) – Adapts to 2″ schedule 40 pipe

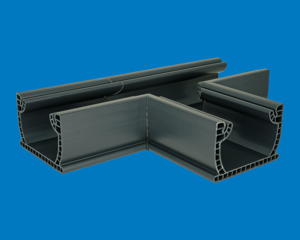

FMTW Tee (1 per carton)

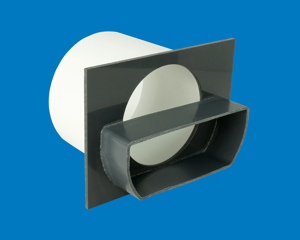

FMDEA End Adapter (1 per carton) – Adapts to 3″ schedule 40 pipe

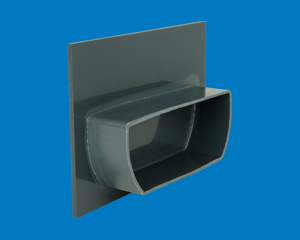

FMDEP End Plug (1 per carton)

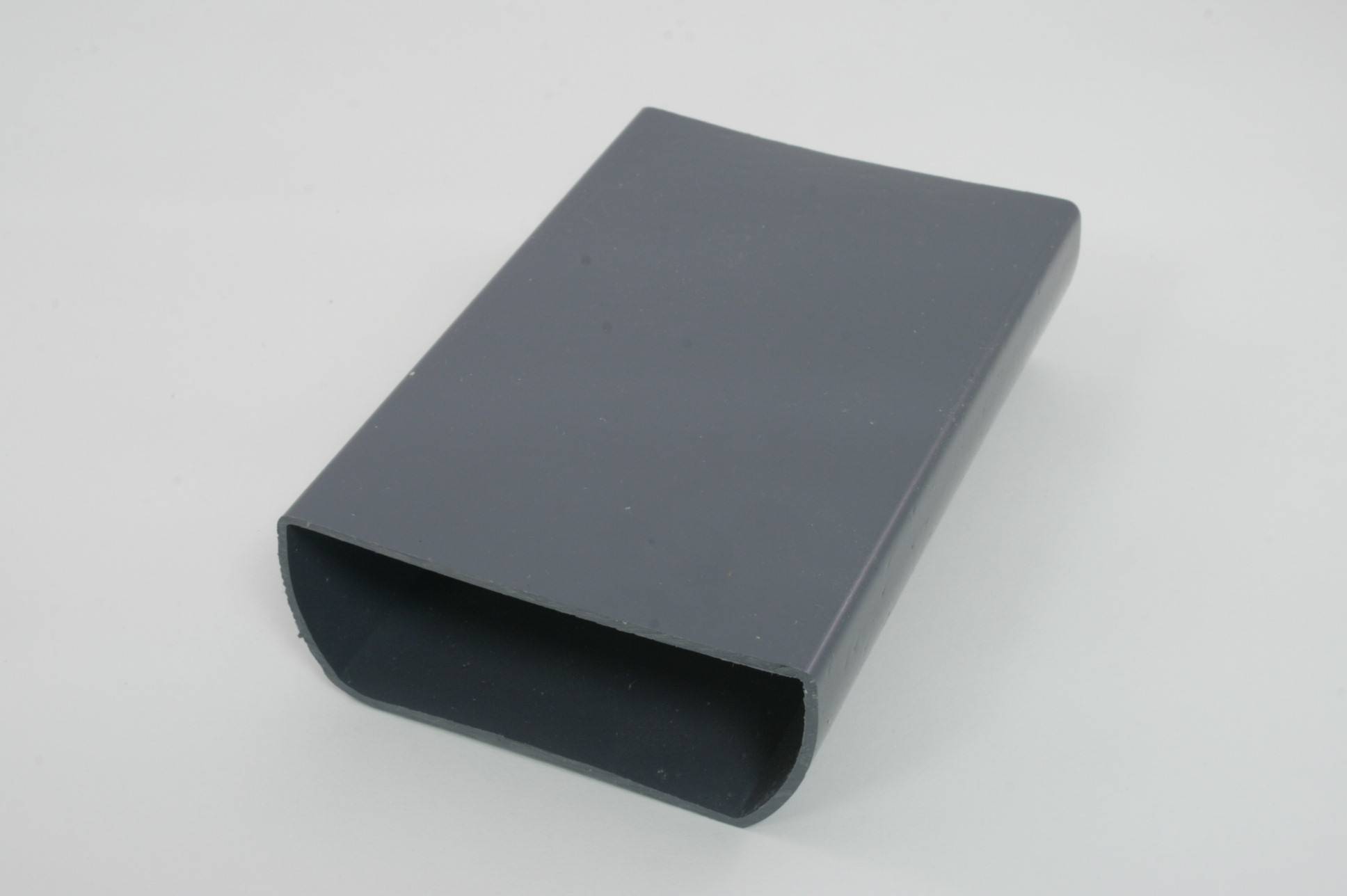

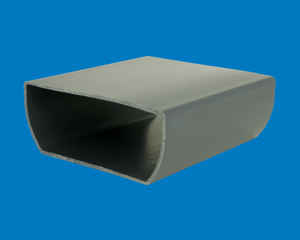

FMDCUP Coupler (1 per carton)



Contact us for the latest info
