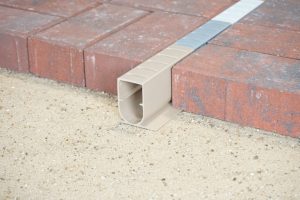

| Paver Drain Pro is a one-piece PVC extruded drain designed to provide surface water drainage on paver decks. This drain accommodates most 60mm or 2 3/8″ height pavers.
This drain features a narrow width and an extended base flange on one side. The flange side should be positioned beneath the paver. The flange side can be strategically located on either parallel side of a drainage configuration. The parallel side opposite the flange can be positioned against a vertical surface such as a wall. The Paver Drain Pro can be easily adapted with 1″ schedule 40 PVC pipe and couplers to a compliment of specialized fittings that are available. The Down Adapters and End Adapters adapt to 1″ Schedule 40 pipe. |
|
|
|
|

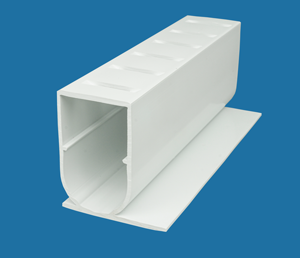

| Part # | Paver Drain Pro |
| PD-PRO-G | Grey |
| PD-PRO-T | Tan |
| PD-PRO-W | White |
| Carton Includes: | |
| 8 | Paver Drain Pro (10′ lengths) |
| 8 | Couplers |

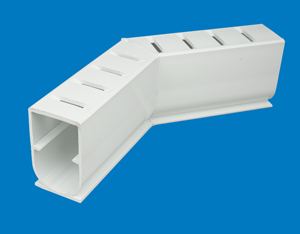

| Part # | 45 Degree Angles – 4/ctn |
| PD-PRO-45W | White |
| PD-PRO-45G | Grey |
| PD-PRO-45T | Tan |

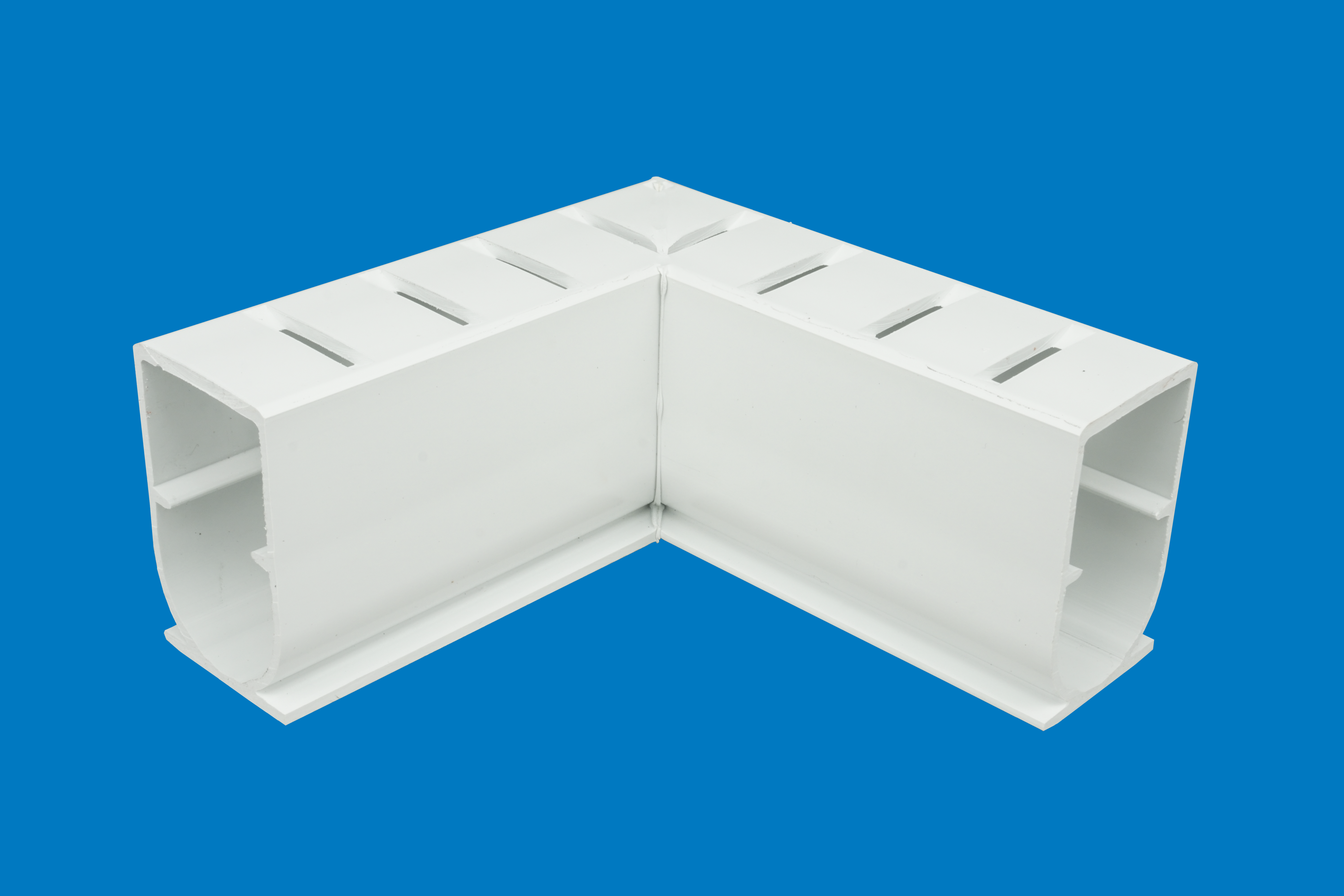

| Part # | 90 Degree Angles – 4/ctn |
| PD-PRO-90W | White |
| PD-PRO-90G | Grey |
| PD-PRO-90T | Tan |

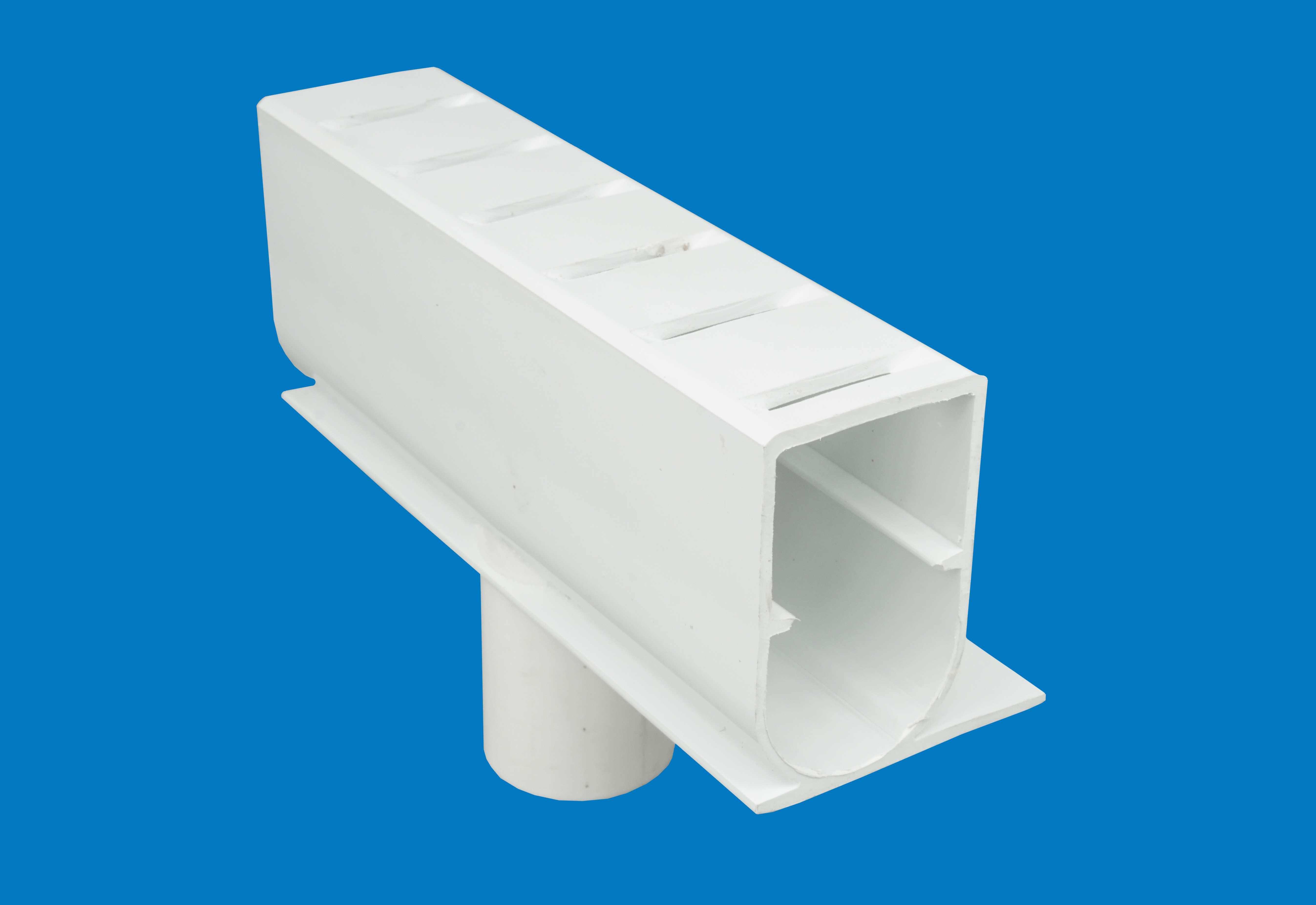

| Part # | Down Adapters – 4/ctn |
| PD-PRO-DAW | White |
| PD-PRO-DAG | Grey |
| PD-PRO-DAT | Tan |

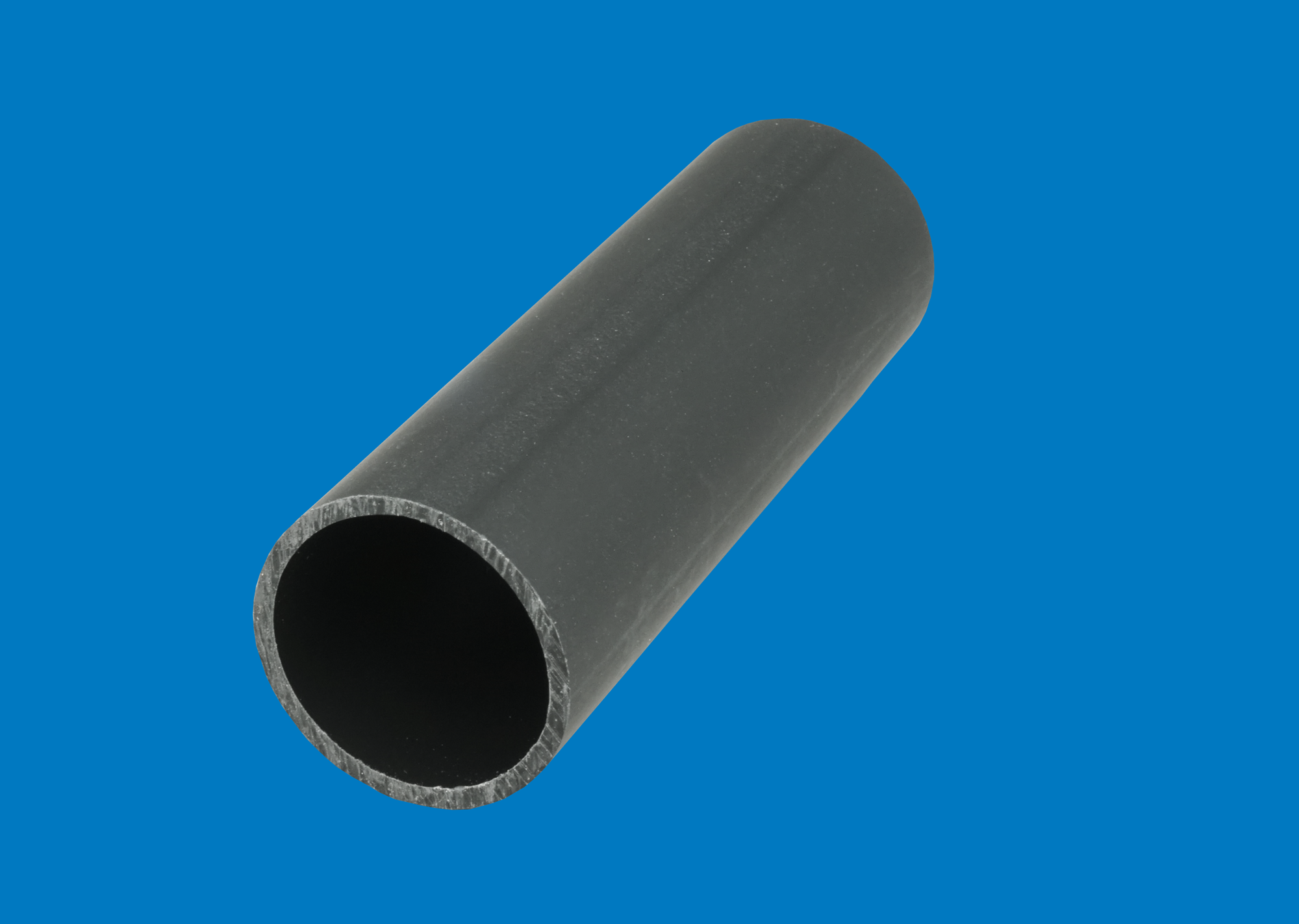

| Part # | Couplers – 12/ctn |
| PD-PRO-DCUP | Coupler |

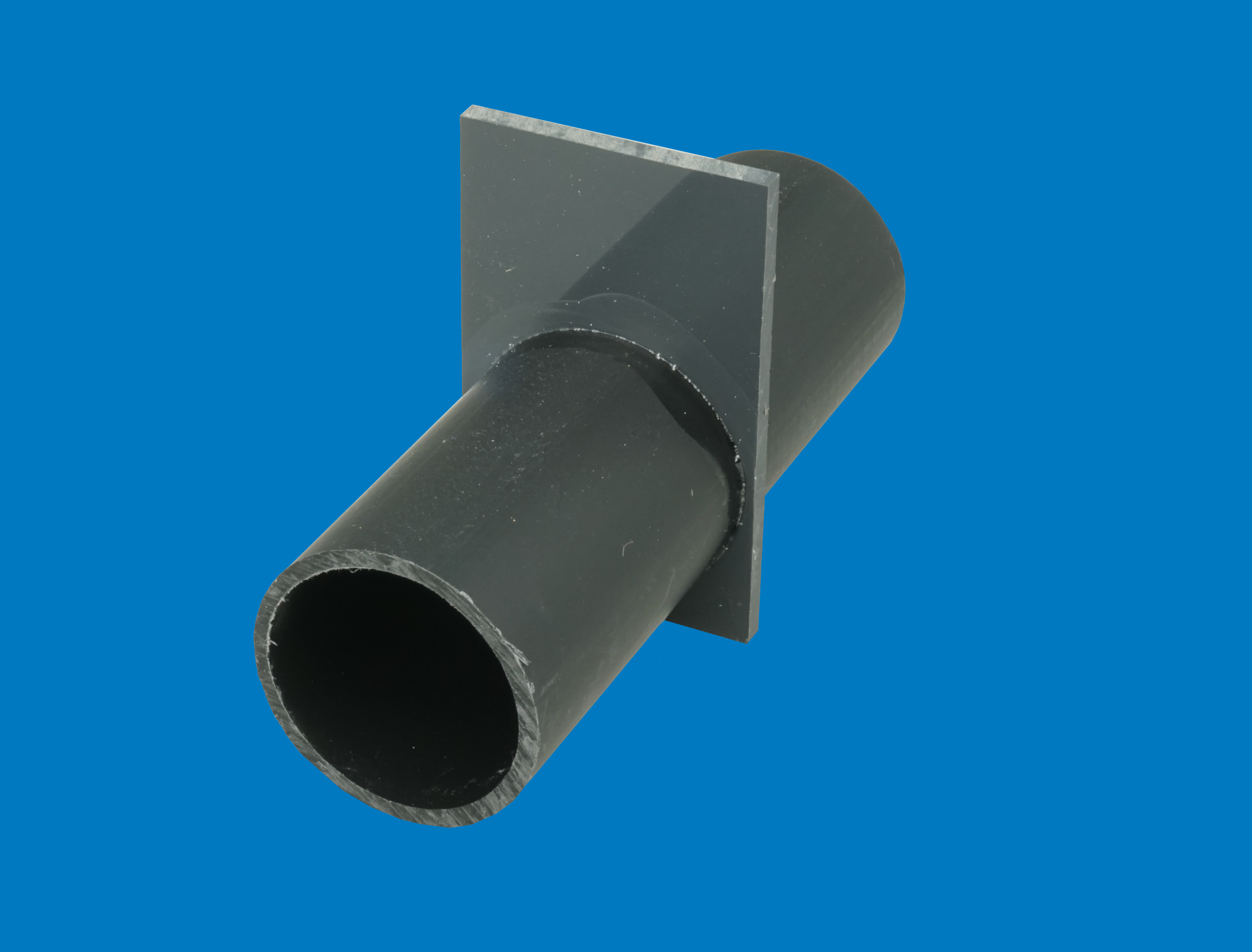

| Part # | End Adapters – 4/ctn |
| PD-PRO-DEA | End Adapters |

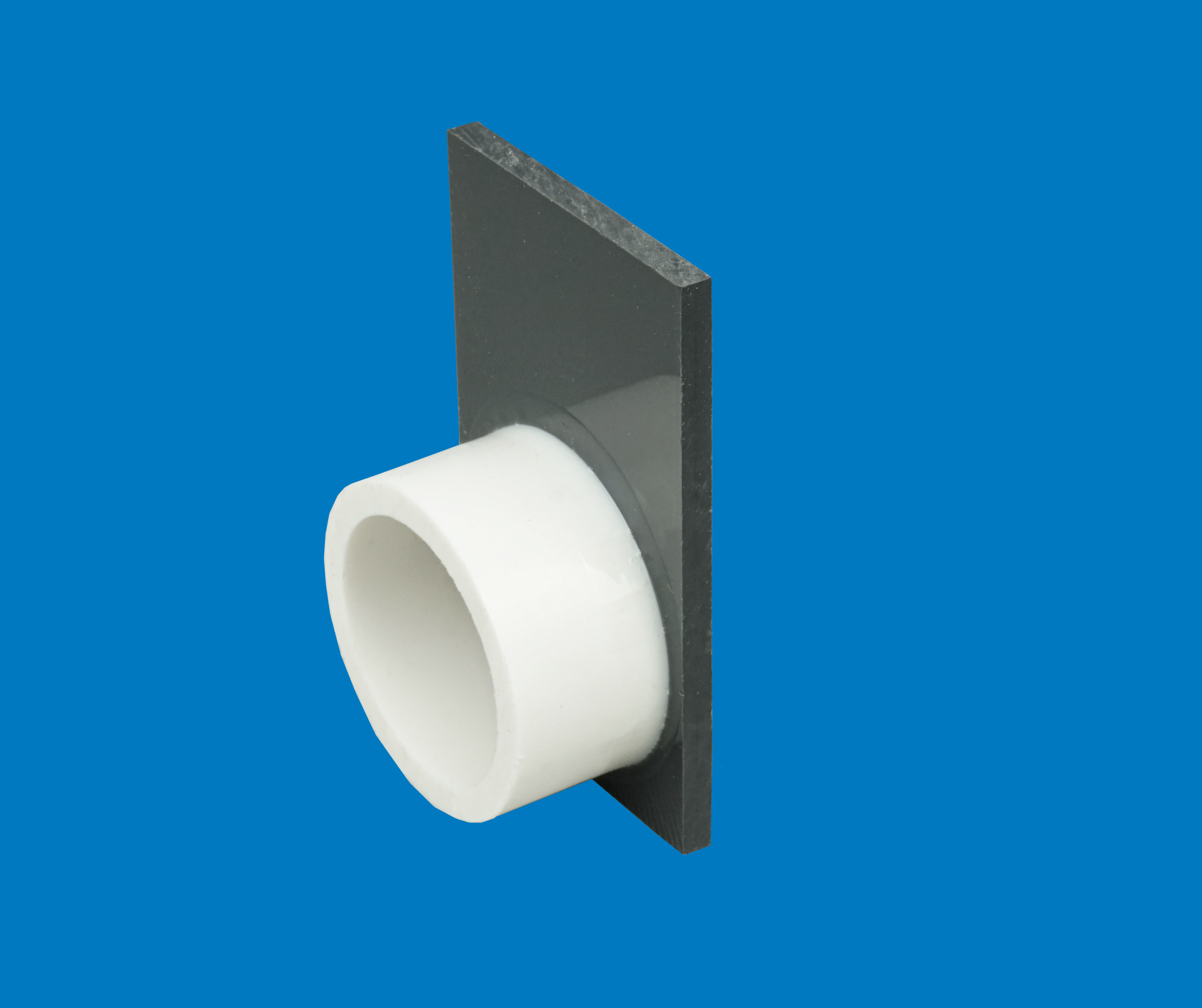

| Part # | End Plugs – 10/ctn |
| PD-PRO-DEP | End Plug |
