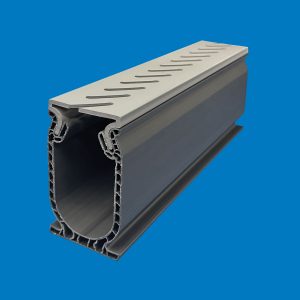

The Frontier Deck Drain Pro is a removable top drain that features a double wall base and a snap in top. When installing this drain, the tops are staggered past the joints making the joints very rigid. The removable top caps make it easy to clean the drain or replace the top caps. It is recommended that you drill and pin the base with a non-Corrosive dowel at 3-foot intervals to stabilize against any movement of the concrete slab. Stegmeier LLC offers a fiberglass Drain Dowel for this purpose. The Frontier Deck Drain Base and Top Cap come in 10-foot sections. The Down Adapter, Side Adapter and End Adapter all adapt to 1 1/2″ schedule 40 pipe.




Click here for Instruction Sheet

NOTE: For more information on the Drain Dowel, please click here.

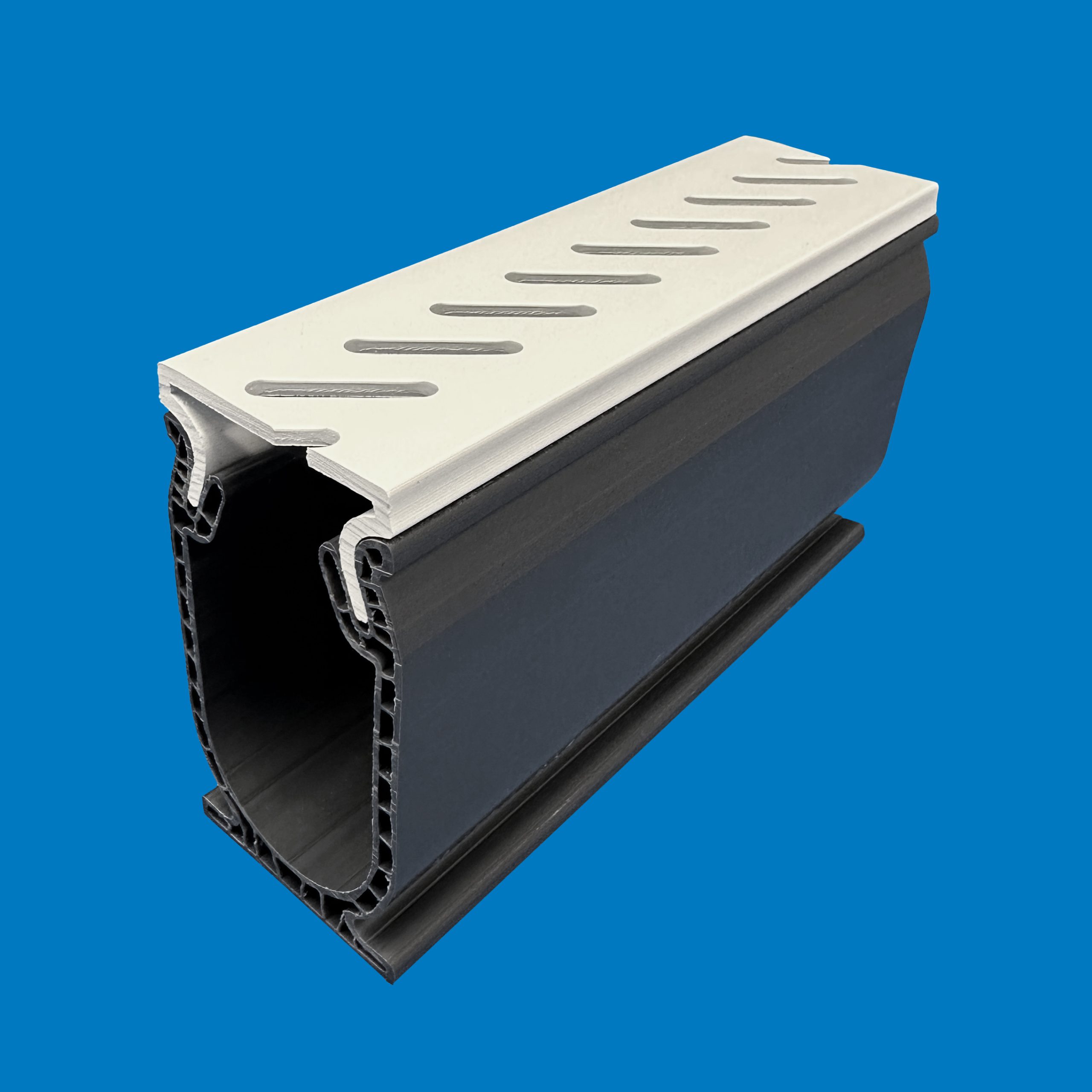

Part # Frontier Deck Drain Pro
SDDPRO-W White
SDDPRO-G Grey
SDDPRO-T Tan
SDDPRO-B Black
SDDPRO-M Marble
Carton Includes:
8 Bases (10′ Lengths)
8 Top Caps (10′ Lengths)
4 End Adapters
8 Couplers

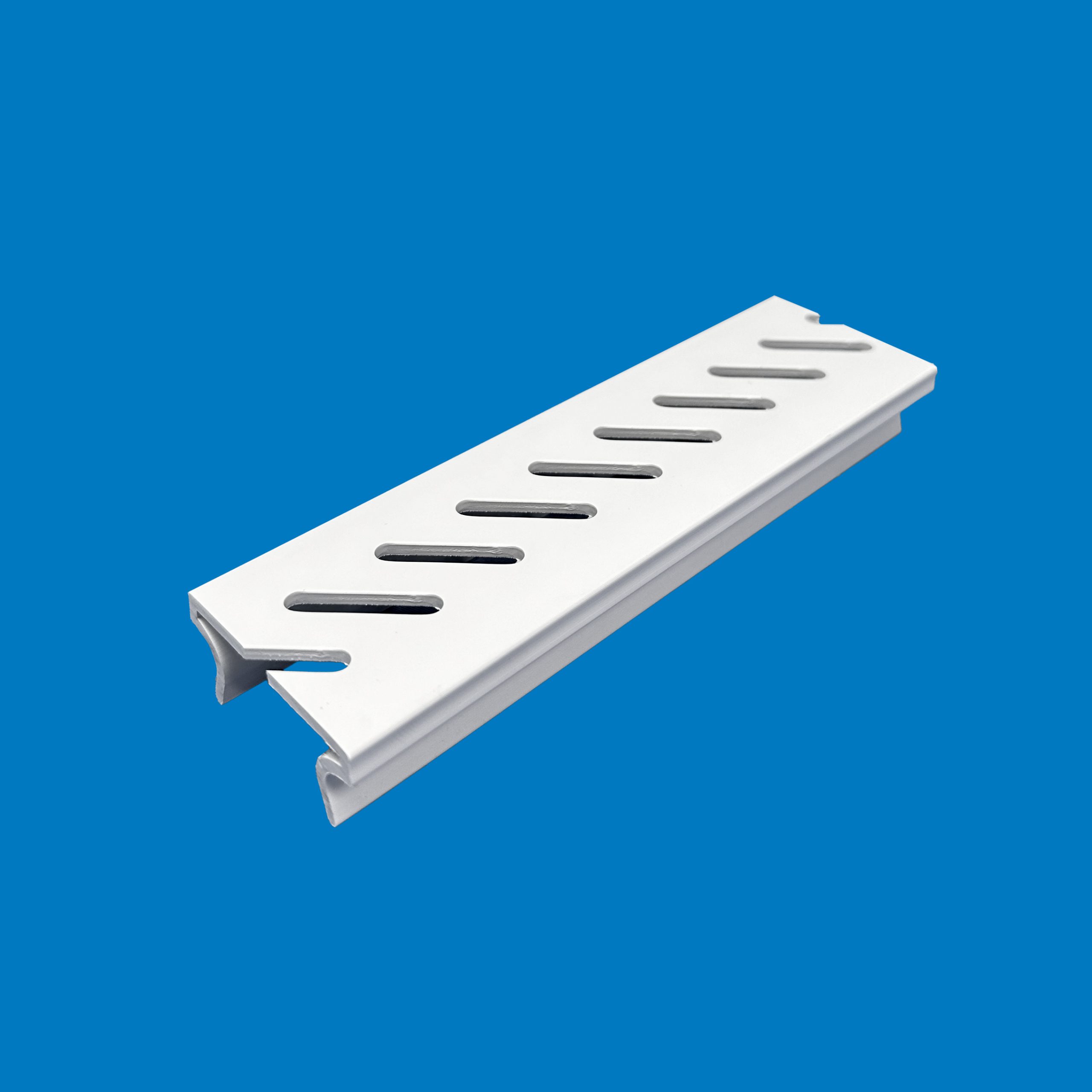

Part # Top Cap Only
SDDPRO-TCW-80 White
SDDPRO-TCG-80 Grey
SDDPRO-TCT-80 Tan
SDDPRO-TCB-80 Black
SDDPRO-TCM-80 Marble
Part # Base Only
BASE Base Only

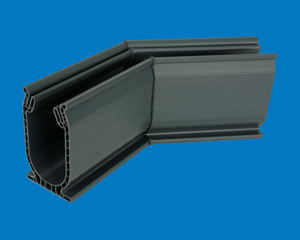

Part # 45 Degree Angle – 10/ctn
SDD45 45 Degree Angle

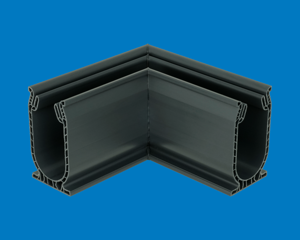

Part # 90 Degree Angle – 10/ctn
SDD90 90 Degree Angle
Part # Down Adapter – 4/ctn
SDD-DA Down Adapter
Part # Side Adapter – 4/ctn
SDD-SA Side Adapter
Part # Tee – 4/ctn
SDD-TW Tee
Part # Cross – 2/ctn
SDD-XW Cross
Part # Coupler – 12/ctn
DCUP Coupler
Part # End Adapter – 4/ctn
DEA End Adapter
Part # End Plug – 10/ctn
DEP End Plug

Contact us for the latest info
